FRAMESET | |
Frame | Lineage Master Bashguard 26" frame - 22.5" full crmo; internal h/t crmo - with removable rotor tab mounting holes; removable brake mounts. | |
Fork | Haro Fork with 990 mounts and internal cable routing; 28mm offset; 3/8" axle; cr-mo steerer; tapered fluted legs | |
Colour | Black |
DRIVETRAIN | |

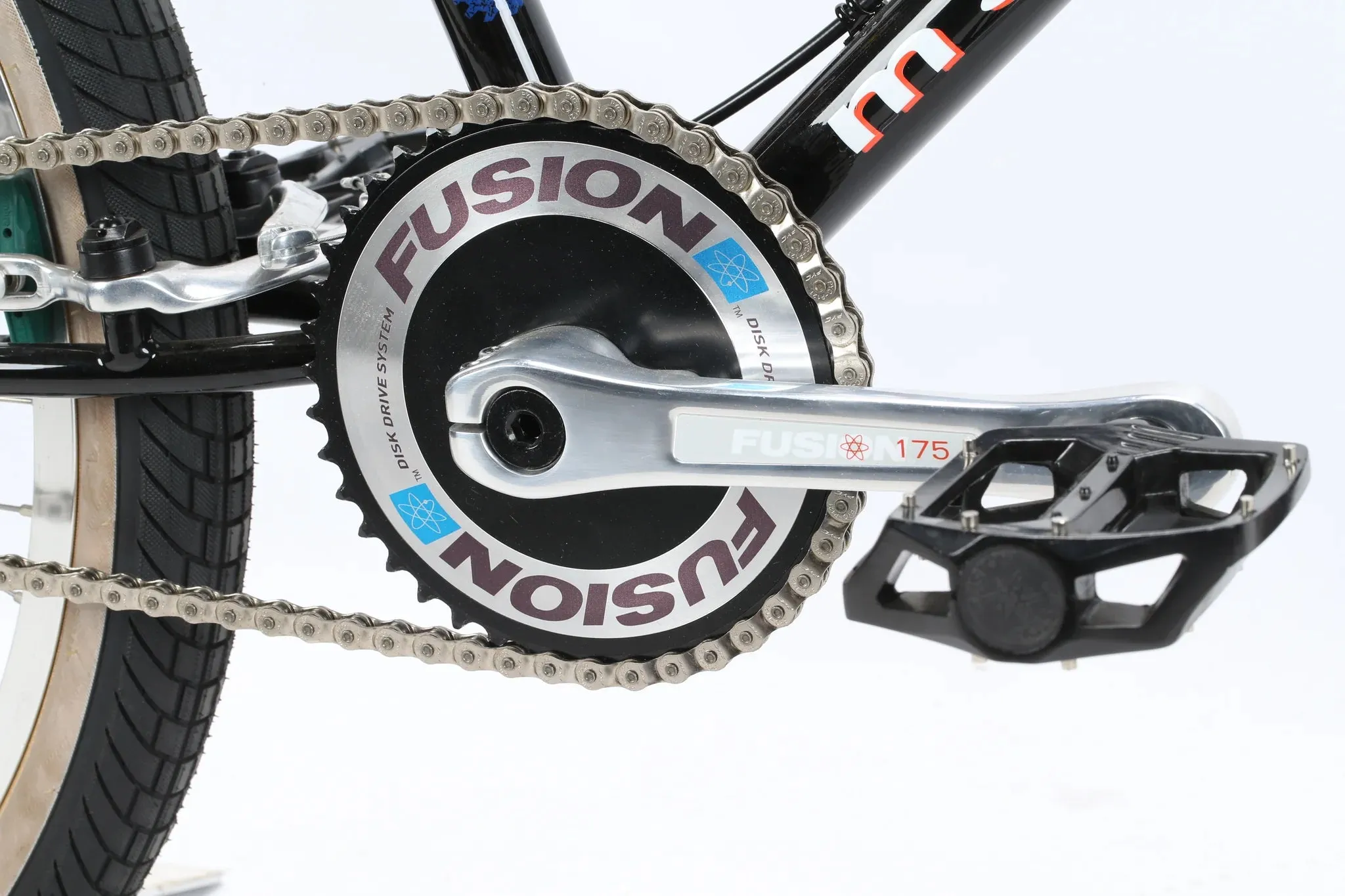

Cranks | Haro Fusion alloy cranks (bolt drive interface) rsd and lsd; 175mm; 22mm od 48-spline spindle; heat treated 4130 |
Bottom Bracket | Sealed MID BB |
Sprocket | Fusion disc sprocket; cnc bolt drive sprocket; 5mm alloy ring; 1/2" x 1/8" x 41t ; solid ring w/ machined teeth, included sprocket adapter |
Gearing | 25/9 |
Pedals | Haro Fusion; alloy pedal body; crmo axle |
Chain | KMC K1Sl; 1/2 x 1/8; Narrow Silver Super Lite |
WHEELS | |
Tyres | Kinda Kranium skinwall tyre; 26x2.25; 60 max psi | |

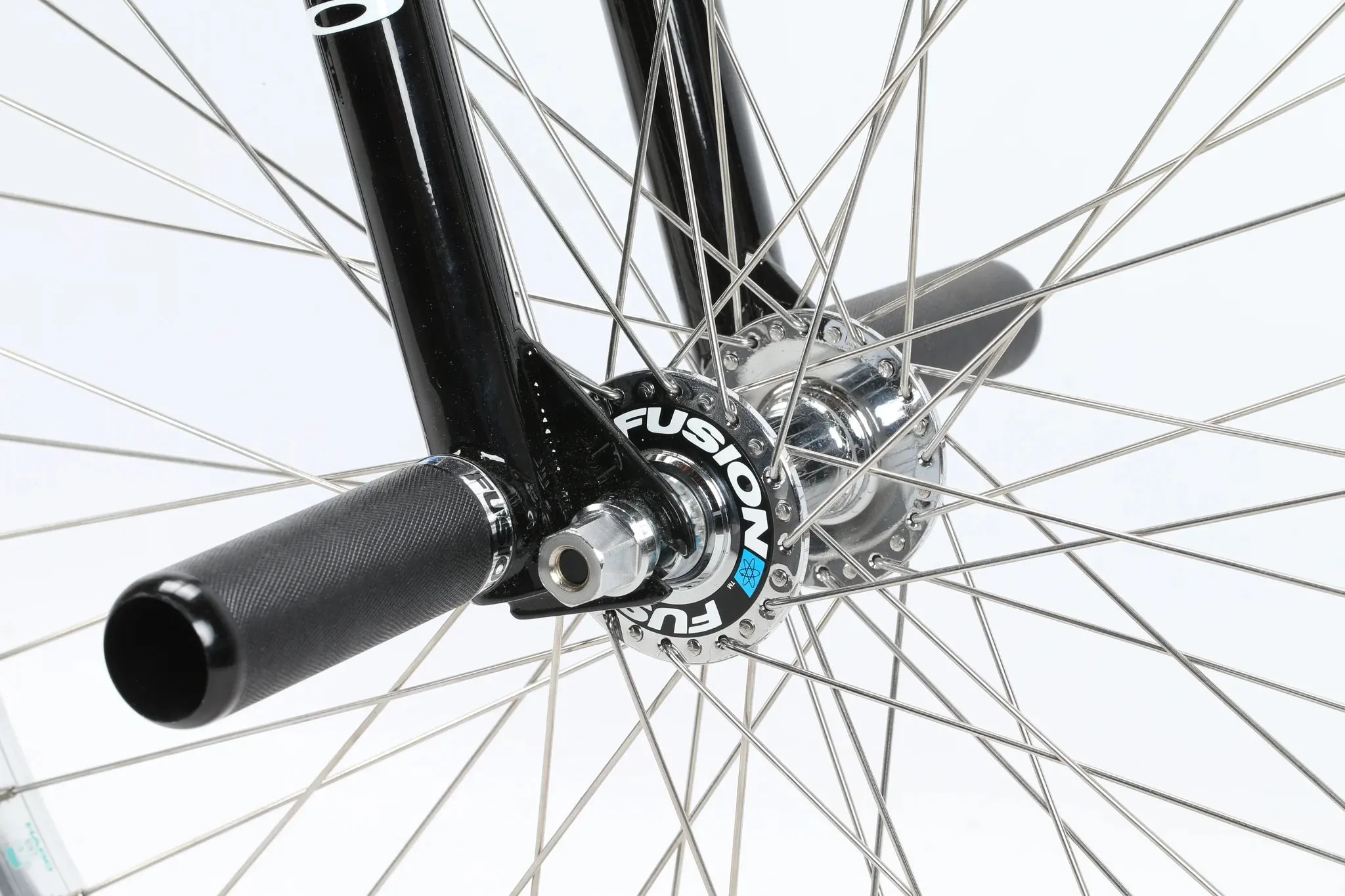

Front Hub | 48h alloy hub body; 3/8"x100wx155l; crmo 155mm straight axle; 2 sealed bearings |
Rear Hub | Freecoaster hub (male bolt); sealed bearings; 17mm steel flange axle nuts; all hardware in cp finish including cone nuts, axle nuts, 17T freewheel |
Rims | Haro Lineage 26x1.75"; 48h; (w200) (double wall welded joint) | |
BRAKING SYSTEM | |

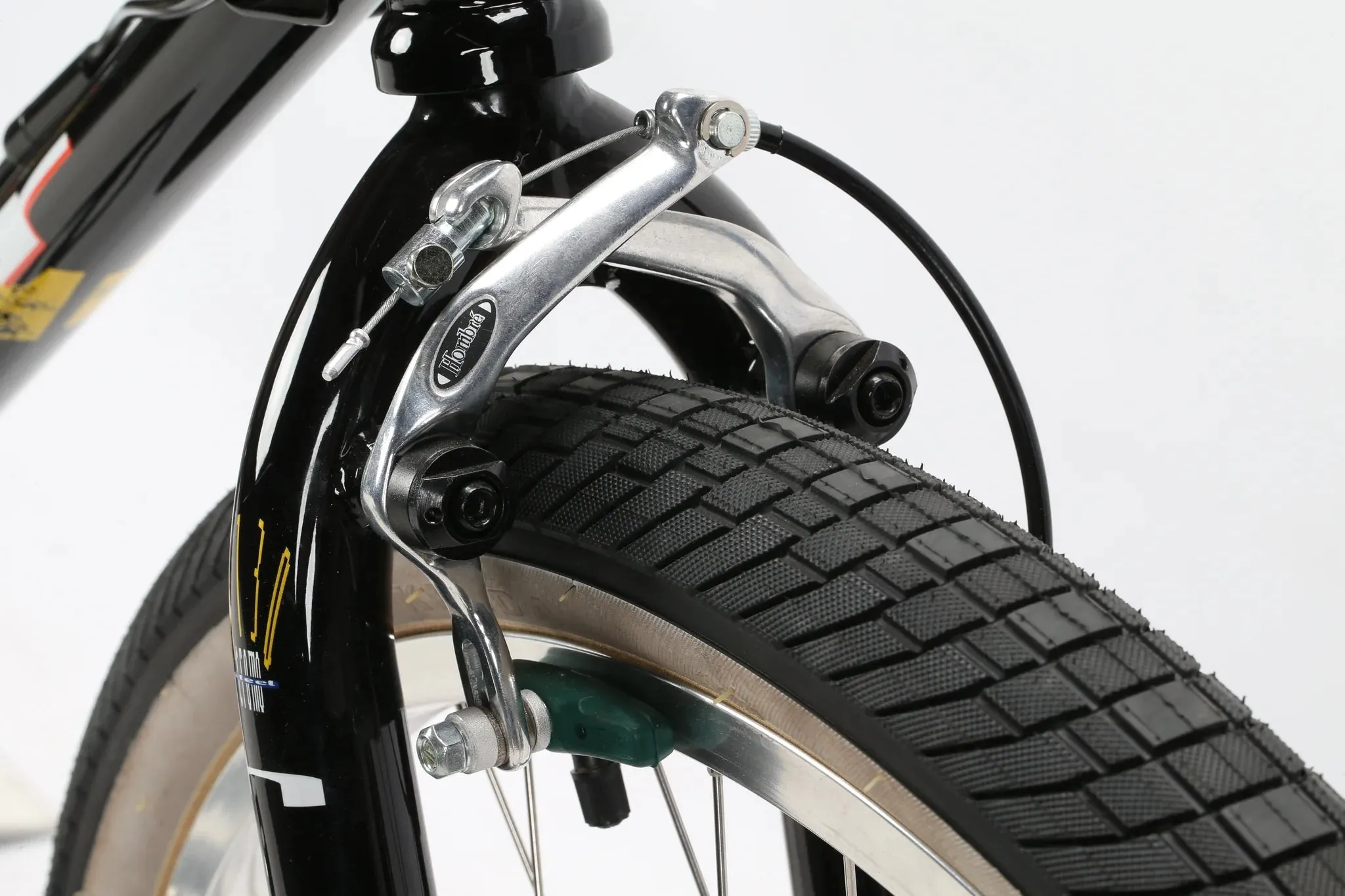

Brake | Dia-Compe fs996 "hombre" u-brake; cold forged aluminum arms; dual spring tension adjustment w/anchor bolt parts |
Brake Lever | Dia-Compe "tech-77" lever without stopper; right and left side; diecast aluminum bracket with hinged clamp; cold forged aluminum lever |
Rotor | Teflon bearing gyro - full cnc 6061 t6 included a-plate |
OTHER COMPONENTS | |
Grips | Haro team grip; 145mm length x 29mm diameter; 50mm od flange (low); kraton a15 material (super soft). |
Handlebar | Lineage kneesaver bar 8.5"; 100% heat treated; multi-butted |
Stem | Haro Lineage fusion top load stem; T6 alloy; cold forged with cnc; 45mm |
Headset | Sealed Integrated, 1 1/8" |
Seat | Haro Fusion slim stealth pivotal seat |
Seat Post | Haro Fusion stealth pivotal seat post; 25.4 x 300mm |
Seat Post Clamp | Haro Fusion twintorc clamp; alloy 6061 |
Pegs | 6061 alloy pegs; 34mm od; 110mm length; include 4 total pegs |
